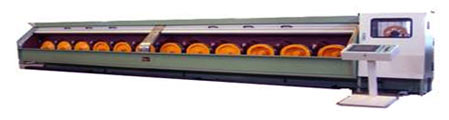

Rod Breakdown Copper Wire Drawing Machine
Usage and Applications:
Drawing Copper and Aluminum conductors for Wire and Cable Industry.
Technical Specifications:
| Model | Nr of dies / capstan | Inlet wire dia. (mm) | Finished wire dia. (mm) | Line Speed (m/min) | Spooler dia. (mm) | Main Motor DC/AC HP |
|---|---|---|---|---|---|---|
| RBDL-14 | 14 | 9.5-8.0 | 4.7-1.2 | 1500 | 560-630 | 300 |
| RBDL-13 | 13 | 9.5-8.0 | 3.2-1.3 | 1500 | 560-630 | 300 |
| RBDL-11 | 11 | 9.5-8.0 | 3.2-1.8 | 1000 | 560-630 | 300 |
| RBDL-9 | 9 | 9.5-8.0 | 3.2-2.2 | 800 | 560-630 | 250 |
Main characteristics:
- Rapid change and replaceable dies.
- Ring type drawing capstans for convenient maintenance and replacement.
- PLC control of drawing speed synchronization and computer die schedule auto-arrangement.
- Online continuous annealer, single spooler or double spooler with automatically bobbin change, or continuous basket down coiler are available.
Components:
- Main drawing machine 1 unit
- Drawing lubrication circulation system 1 unit
- Gear lubricant circulation system 1 set
- Wire broken detector 1 set
- Driving motor and control panel 1 set
- Control / operation panel 1 set
