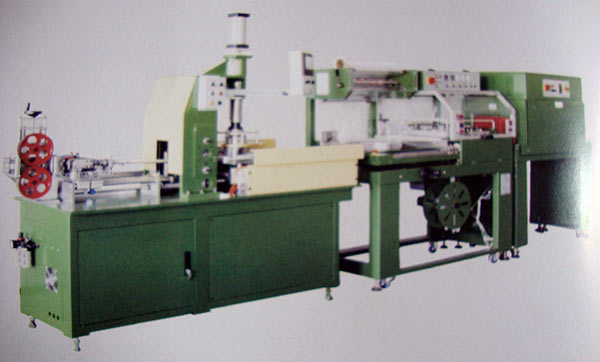

Automated Coiling Machine,
Wrapping and Shrinking Ovens
Usage and Applications:
Used for coiling wire from an extrusion line or from a pay-off.
Technical Specifications:
Winding speed for 1,000 m coil length: up to 500 m/min
| Feature | Dimensions |
|---|---|
| Coil height: | 40 - 150 mm |
| Coil outside diameter: | max. 400 mm |
| Coil inside diameter: | 150 mm |
| Wire / Cable diameter: | 1 – 12 mm |
Main characteristics:
- The machine will detect faults when the problem occurs, and shows alarm on the control panel.
- Servo motor traversing system produces coil with smooth surface.
- The cover made of the aluminum frame & PC window to enhance the operation safety.
- You may input and keep 99 types of coil data in the PLC memory.
