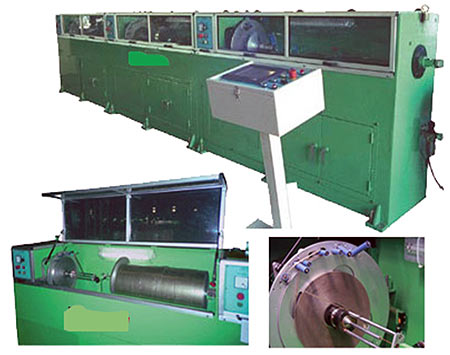

Mica Taping Machine
Usage and Applications:
Used for mica tape high speed helical tapping.
Technical Specifications:
| Model | Type | Pad size (mm) DxdxW | Product dia. (mm) | Rotating speed (rpm) | Pad shaft capacity (mm) | Reel diameter (mm) |
|---|---|---|---|---|---|---|
| MTH40V | vertical | 400x75x10 | 1-4 | 2000 | 300 | 500-630 |
| MTH40H | horizontal | 400x75x30 | 1-10 | 2000 | 1000 | 630-1250 |
Main characteristics:
- Concentric tapping with hysteresis pad tension control.
- Special design for fire prevention wire.
- Each taping head and capstan are individually driven.
- MMI + PLC for lapping pitch, tape tension compensation control and speed synchronization control.
- Horizontal type complete with pad taping and reel taping.
