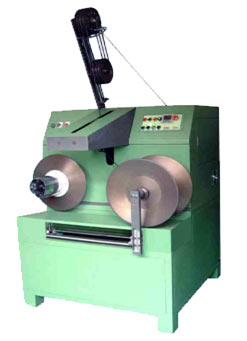

Double Head Winding Machine
Usage and Applications:
Winding wire/cable into a coil or onto reels.
Technical Specifications:
- Wire diameter: 1-8 mm
- Speed: 200-1200 rpm continuously adjustable
- Outer diameter: 100-400 mm
- Width: 80-300 mm
- Drive shaft size: according to customer’s bobbin
| Model | Cable diameter (mm) | Width (mm) | Outer diam (mm) | Speed (rpm) |
|---|---|---|---|---|
| DHWM-200 | 1-9.9 | 80-300 | 100-400 | 1200 |
Main characteristics:
- Touch screen makes it easy to operate the machine
- Servo motor traversing system produces coil with smooth surface.
- The machine can keep 50 types of coil / spool data in the PLC memory. Just recall the coil type type from memory and push the Start button.
