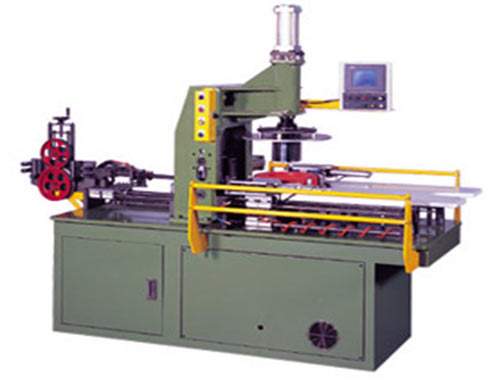

Automated Coiling Machine
Usage and Applications:
Used for coiling wire from an extrusion line or from a pay-off.
Technical Specifications:
Winding speed for 1,000 m coil length: up to 500 m/min
| Feature | Dimensions |
|---|---|
| Outside Diameter: | 180 – 800 mm |
| Inner Diameter: | 120 – 300 mm |
| Coil Hight: | 40 – 240 mm |
| Product Diameter: | 1 – 25 mm |
Main characteristics:
- The machine will detect faults if a problem occurs, and provide an alarm.
- Touch screen makes it easy to operate the machine.
- Servomotor traversing system produces a coil with a smooth surface.
- It is unnecessary to adjust any parts of the machine when changing from one size of coil to another. You can input and keep 100 types of coil data in the PLC memory.
