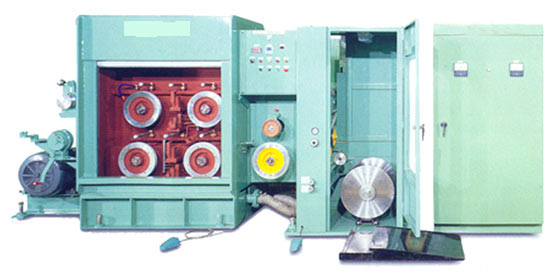

Fine Copper Wire Drawing Machine
Usage and Applications:
- Copper wire drawing
- Tin plated copper is suitable in this fine wire drawing machine.
- Brass wire (fine wire drawing machine with special modifications needed)
Technical Specifications:
| Model | Drawing dies | Inlet wire dia. (mm) | Finished wire dia. (mm) | Line Speed (m/min) | Main Motor DC/AC HP | Optional equipment |
|---|---|---|---|---|---|---|
| FCWD-20 | 20 | 0.5-0.15 | 0.12-0.05 | 2000 | 5+3 | Annealing equipment, drawing lubricant, cooling system |
| FCWD-22 | 22 | 1.2-0.6 | 0.32-0.1 | 2000 | 15+5 | |
| FCWD-24 | 24 | 1.0-0.5 | 0.25-0.07 | 2000 | 15+5 |
| Model | Wire range (mm) | Line Speed (m/m) | Annealing – Elongation Ratio | Capacity (kVA) | Voltage (V) | Annealing Type |
|---|---|---|---|---|---|---|
| FWAM-40 | 0.6-0.25 | 1200-1800 | 22% | 40 | 30-65 | SCR line tracing |
Main characteristics:
- Horizontal slip type tandem drawing of single copper wire: four capstans with multi-steps, ceramic coating drawing capstan long life for wearing.
- PLC computer control of drawing speed synchronization and computer die arrangement.
- Online continuous annealer and single spooler.
- No steam or Nitrogen needed for wire anti-oxidation during annealing machine annealer process.
- 10 tuning annealing machine points for each annealing machine annealer curve adjustment. This is very important since operator can fine tune the annealing machine annealer curve under different wire drawing conditions
- Fine wire drawing machine for different material, different sizes of product parameters can be stored in the PC and recalled while making the same products.
- Precise annealing machine, annealer power control at low line speed for hard wire elimination.
- Both internal circulation / external circulation piping system with wire draining machine pipe connectors are included. Machines can operate independently or with lubricant tank shared with other fine wire drawing machines.
- High accuracy fine wire drawing machine close loop speed control for constant quality products.
- Anti-Corrosion high accurate fine wire drawing machine die holder rather than casting one.
- High-frequency (95%) transformer rather than traditional low efficiency transformer (80% max.)
