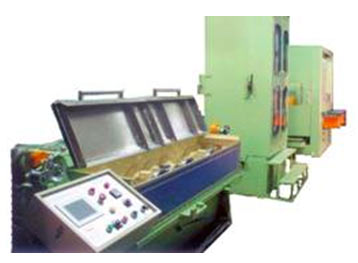

Medium Copper Wire Drawing Machine
Usage and Applications:
Drawing Copper and Aluminum conductors for Wire and Cable Industry.
Technical Specifications:
| Model | Nr of dies / capstan | Inlet wire dia. (mm) | Finished wire dia. (mm) | Line Speed (m/min) | Mechanical elongation ratio - % | Main Motor DC/AC HP |
|---|---|---|---|---|---|---|
| MCDM-17 | 17 | 1.6-3.2 | 1.6-0.35 | 500-2000 | 15-20 | 65 |
Main characteristics:
- Horizontal type wire drawing machine.
- Rapid change and dies.
- PLC control of drawing speed synchronization and computer die schedule auto-arrangement.
- Can be installed online with continuous annealer, single or double spooler with auto-bobbin change, or continuous basket down coiler is available.
